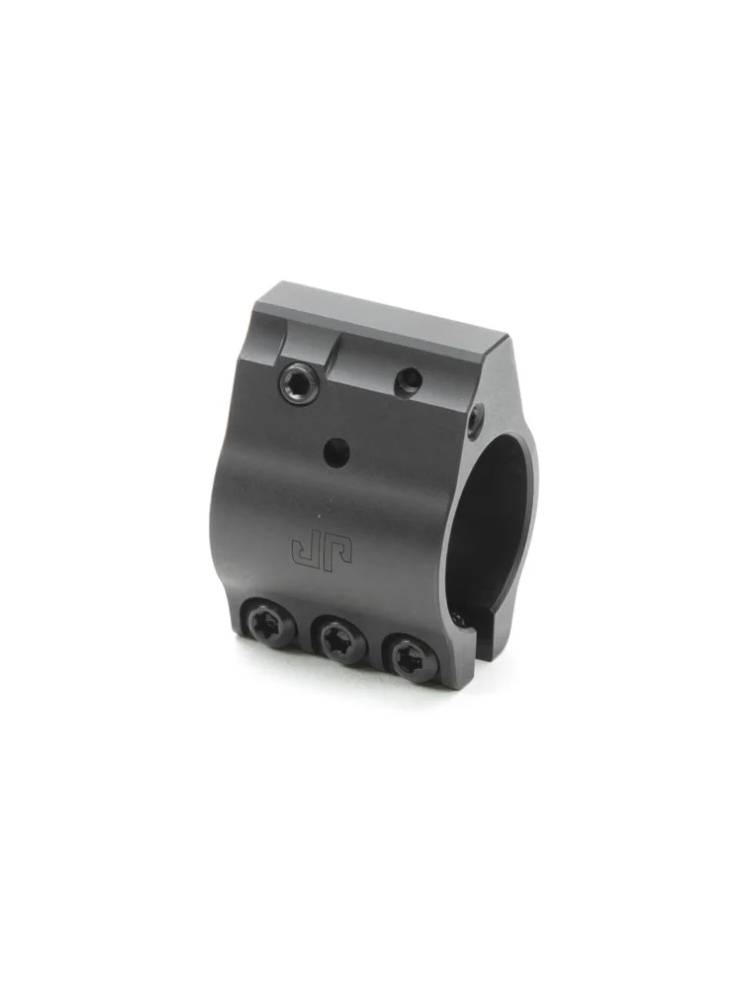

JP Adjustable Gas System
Low profile | 1-Piece
.750 bore
Black stainless steel
Detent Adjustment
The JPGS-5D is our minimized small bore design intended to mount underneath many hand guard models on the market.
This model features our new click-adjustable detent system for precise adjustments and secure retention of your gas screw. Never lose you gas setting or screw.
Features:
- Click-adjustable detent system for repeatable setup and secure retention of gas setting
- Six clicks per rotation of gas screw for finer adjustments
- Easy to access side gas adjustment
- Internally retained detent components means no lost parts
Specifications:
- Barrel Diameter: .750
- Material: 416 stainless
- Finish: Black
- Weight: 2.4 oz.
- Length: .97″
- Height: 1.37″ (overall), .79″ (over bore)
- Width: 1.16″
- Attachment: 6-32 x 3/8″ socket head screws, T10 Torx drive (included)
(includes 5/64 x 5/16 roll pin for Gas Tubeation) - Adjustment: 8-32 set screw, 5/64 hex drive (included)
